Volume control damper 1500x400 for actuator
Product code - SKU
VD 1500x400 S
Costurile de livrare / transport NU sunt incluse !
Description

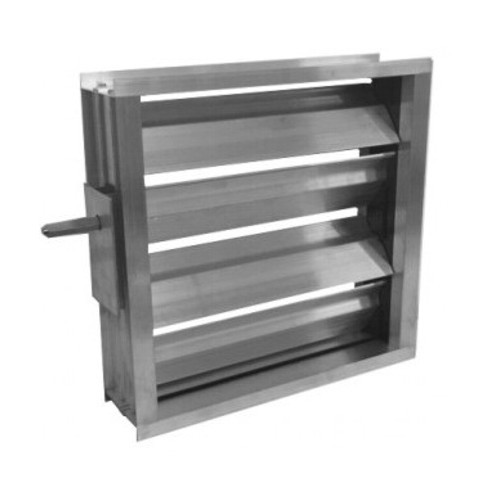

Volume control damper for rectangular ducts, with opposed counter rotating blades.

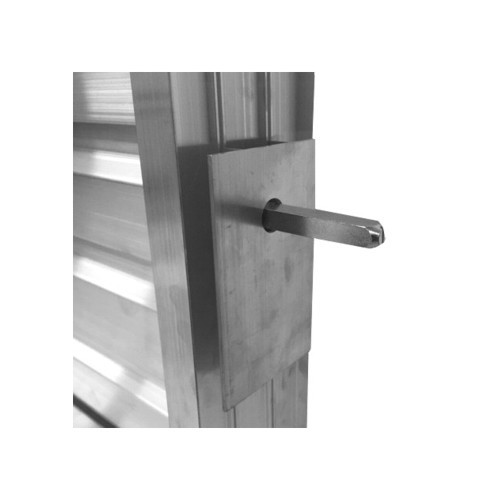

Prepared for actuator mounting (support plate and square 12x12 mm shaft).
Blade width: 100 mm. Each blade is fitted with EPDM gasket.
Casing tightness class C and blade leakage class 3, according to SR EN 1751:2014.
Datasheet: VD.pdf
Details
SKU
VD 1500x400 S
Categories
Weight
11.2 kg
Dimension a (horizontal)
1500 mm
Dimension b (vertical)
400 mm
Availability
2-3 days
Courier shipping (RO only)
no
