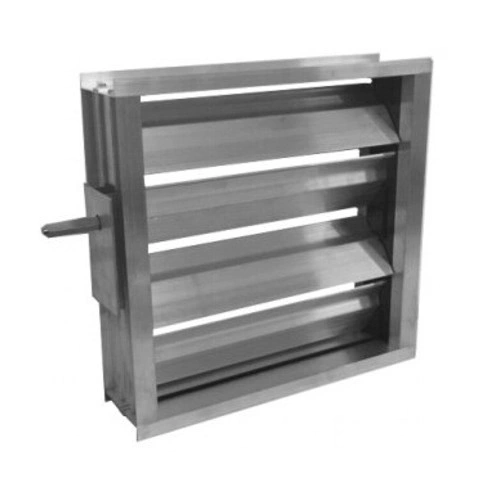

Clapeta reglaj debit rectangulara pentru servomotor

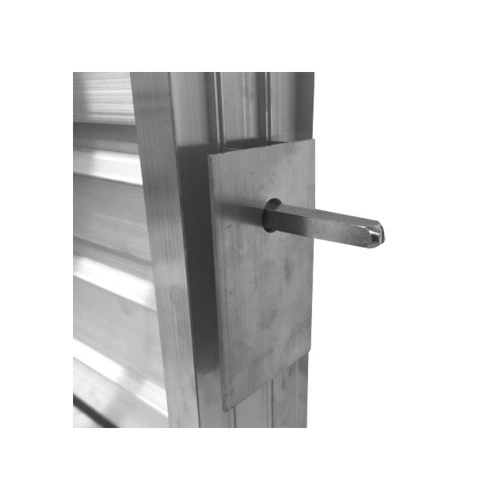

Clapeta reglaj debit rectangulara - detaliu
Clapeta reglaj debit rectangulara pentru servomotor
Clapeta reglaj debit rectangulara - detaliu

Volume control damper 900x300 for actuator

Intra in cont pentru a vedea pretul
Product code: VD 900x300 S
Dimension a (horizontal): 900 mm
Dimension b (vertical): 300 mm
Availability: 2-3 days
Courier shipping (RO only): yes

Description

Volume control damper for rectangular ducts, with opposed counter rotating blades.
Prepared for actuator mounting (support plate and square 12x12 mm shaft).
Blade width: 100 mm. Each blade is fitted with EPDM gasket.
Casing tightness class C and blade leakage class 3, according to SR EN 1751:2014.


Datasheet: VD.pdf
